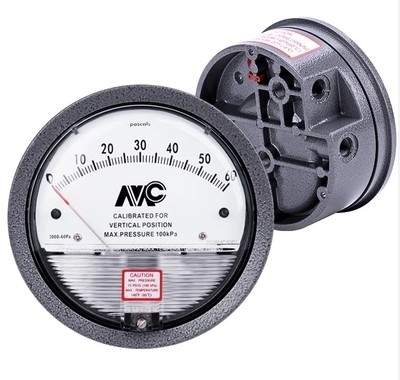

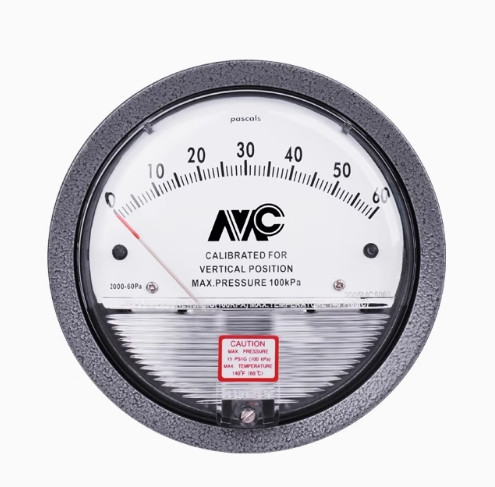

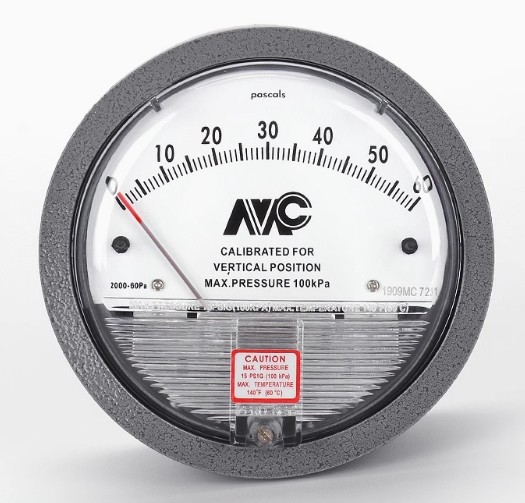

MC Differential Pressure Gauge OEM Micro 100 Psi Pressure Gauge Stainless steel
| Place of Origin | China |
|---|---|
| Hàng hiệu | MC |
| Chứng nhận | CCC,CE |
| Model Number | 0-60Pa |
| Minimum Order Quantity | 5 |
| Giá bán | USD$37/pc |
| Packaging Details | original |
| Delivery Time | 2-3days |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 1000pcs/month |
Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xThông tin chi tiết sản phẩm
| Ambient temperature | -15~60℃ | Rated pressure | -68~103Kpa |
|---|---|---|---|
| Weight | 540g | Appearance dimensions | 120*55.6mm |
Mô tả sản phẩm
OEM low cost model 2000 micro differential pressure gauge good price
product description

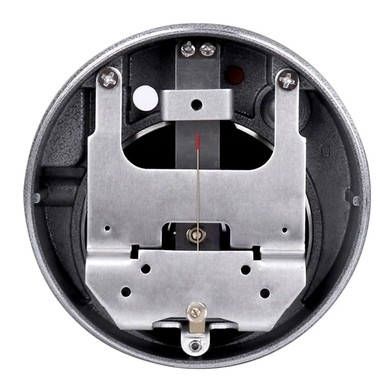

MC2000 series differential pressure gauges are made of thin aluminum hollow seamless tubes, Effectively reduce the response time of pressure pointer, There is no lag.The shell is rust resistant, long life, no foaming.
| Brand name | MC |
| model | 2000 series micro differential pressure gauge |
| measuring range | 1~60mpa |
| Material | all aluminum investment casting |
| Customized support | OEM, ODM |
| Temperature range | 20 to 140 ° F |
product specification
product installation
The diameter of the mounting
hole is 115MM. Fix the differential pressure gauge with mounting screws and adapters.
Surface mounting is secured
by three M4*8 screws through three mounting holes on the 105MM diameter mounting panel.
matters need attention
Pressure measurement: the pressure source is connected with any one of the two high pressure mouths with the air pipe, and the unnecessary plug is used to make one or two low pressure mouths through the atmosphere.
Pressure difference measurement: the high pressure source is connected with any one of the two high pressure mouths with the air duct, and the low pressure is connected with any one of the two low pressure mouths with the air duct, and the two curved pressure mouths are not used on the table.
Measuring the negative pressure:The pressure source is connected with any one of the two low pressure mouths with the air pipe, and the plug is not used to make one or two high pressure mouths through the atmosphere.
About our company
1. who are we?
We are based in Zhejiang, China, start from 2013,sell to Southeast Asia(40.00%),Domestic Market(35.00%),Africa(15.00%),Mid East(10.00%). There are total about null people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Differential pressure gauge,Red oil differential pressure gauge,Pressure differential pressure transmitter,Level controller,Float switch
4. why should you buy from us not from other suppliers?
We have excellent and experienced foreign trade team and other teams to provide you with the best and professional services. Our products are sold all over the world as best-selling products and high reputation products. We aim to maintain a high standard
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,CIP,FCA,CPT；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
6. If you have any questions about our products, please do not hesitate to contact me soon . contact us
