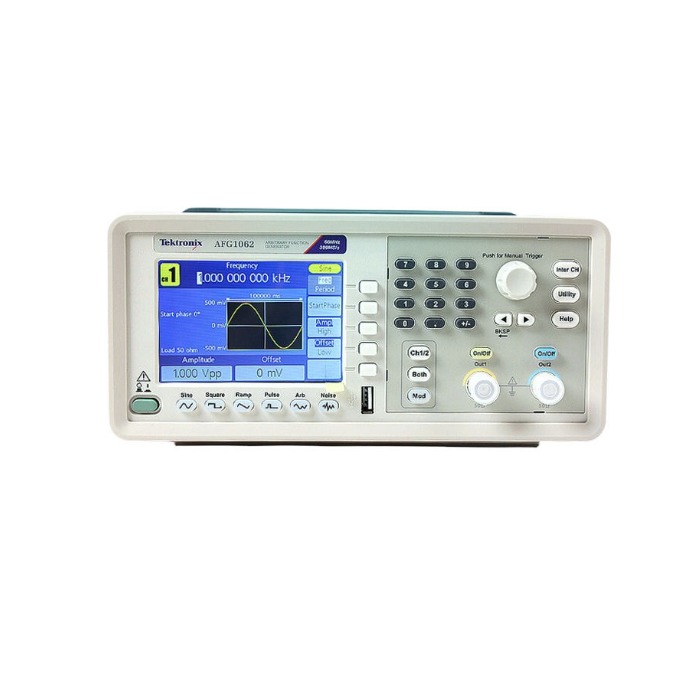

Tektronix Signal Source AFG1022 AFG1062 Arbitrary Waveform Function Signal Generator

  • Tektronix Signal Source AFG1022 AFG1062 Arbitrary Waveform Function Signal Generator
  • Tektronix Signal Source AFG1022 AFG1062 Arbitrary Waveform Function Signal Generator
  • Tektronix Signal Source AFG1022 AFG1062 Arbitrary Waveform Function Signal Generator
  • Tektronix Signal Source AFG1022 AFG1062 Arbitrary Waveform Function Signal Generator
  • Tektronix Signal Source AFG1022 AFG1062 Arbitrary Waveform Function Signal Generator
Place of Origin China
Hàng hiệu TEKTRONIX
Chứng nhận -
Model Number AFG1022 AFG1062
Minimum Order Quantity 1
Giá bán USD820/PC
Packaging Details Original
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000

Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
warrany 1 year Analog Bandwidth 25 MHz/60 MHz
Sample Rate 125 MS/s / 300 MS/s Record Length 8k points/1M points
Làm nổi bật

AFG1062 Function Signal Generator

,

Function Signal Generator AFG1022

,

Arbitrary Waveform Function Signal Generator
Để lại lời nhắn
Mô tả sản phẩm

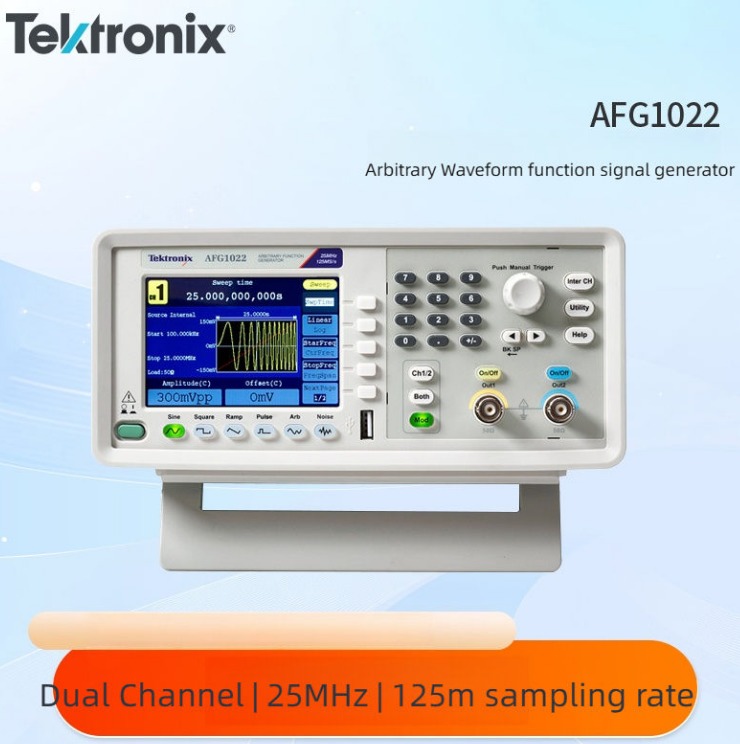

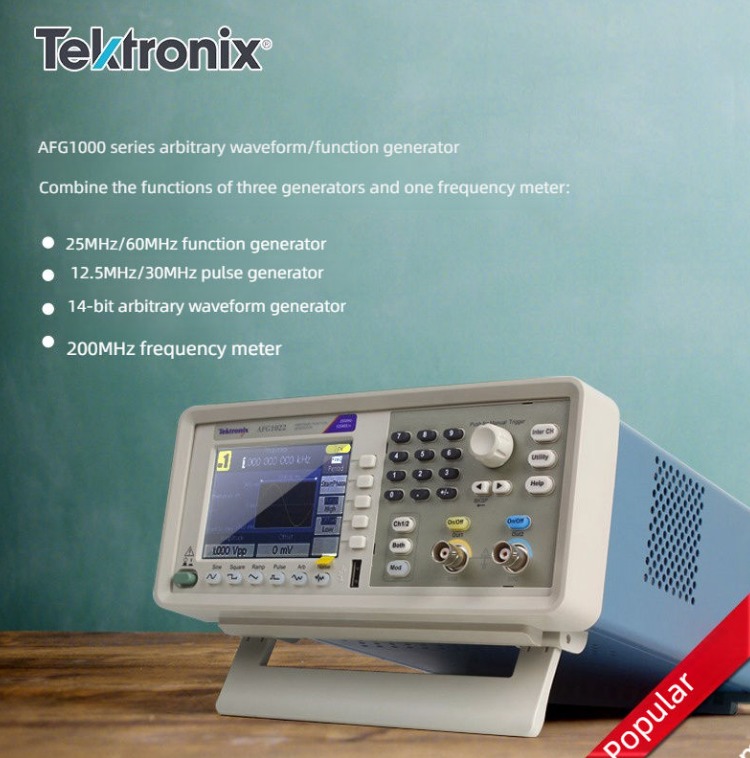

The AFG1000 Series Arbitrary Function Generator provides a waveform generation tool with the best price performance ratio. It includes two models with dual channels, up to 60 MHz bandwidth and up to 10 Vp-p output amplitude. The four run modes, 50 built-in frequently-used waveforms and the built-in 200 MHz frequency counter cover most waveform generation needs in your experiment and test jobs. The 3.95-inch TFT LCD, short-cut buttons, USB interface and PC software provide the most intuitive ways to configure the instrument.

Key performance specifications

  • Dual-channel, 25 MHz or 60 MHz sine waveforms, 12.5 MHz or 30 MHz square waveforms
  • 14 bits, 125 MS/s or 300 MS/s arbitrary waveforms with 8 k points record length
  • Amplitude 1 mVp-p to 10 Vp-p into 50 Ω loads

Key features

  • Continuous, sweeping, burst, and modulation modes (AM, FM, PM, ASK, FSK, PSK, PWM) covers most requirements for students and other users to get the experiments/test job done
  • 64-MByte internal non-volatile memory for arbitrary waveform storage
  • Built-in 200 MHz counter with 6-digit resolution offers an easy and precise way of frequency/period/pulse width/duty cycle measurement
  • Standard USB host/device for memory expansion and remote control

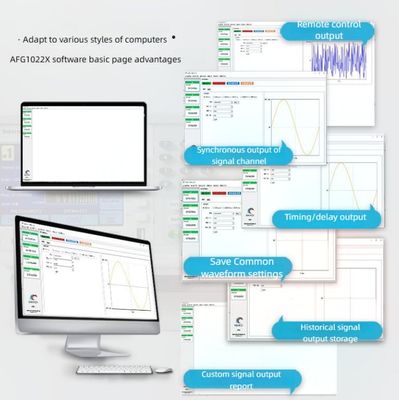

  • Free ArbExpress makes user defined waveforms editing extremely easy through an external USB memory stick
  • Standard 5-year warranty

Applications

  • Electric and electronics experiments
  • Communications experiments
  • Sensor simulation
  • Functional testTektronix Signal Source AFG1022 AFG1062 Arbitrary Waveform Function Signal Generator 0Tektronix Signal Source AFG1022 AFG1062 Arbitrary Waveform Function Signal Generator 1Tektronix Signal Source AFG1022 AFG1062 Arbitrary Waveform Function Signal Generator 2Tektronix Signal Source AFG1022 AFG1062 Arbitrary Waveform Function Signal Generator 3Tektronix Signal Source AFG1022 AFG1062 Arbitrary Waveform Function Signal Generator 4
