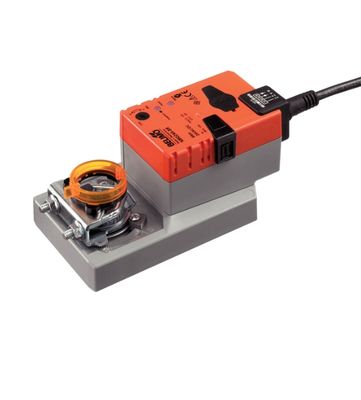

Belimo 24V Air Valve Actuator 8Nm Torque IP54

Place of Origin China
Hàng hiệu Belimo
Chứng nhận /

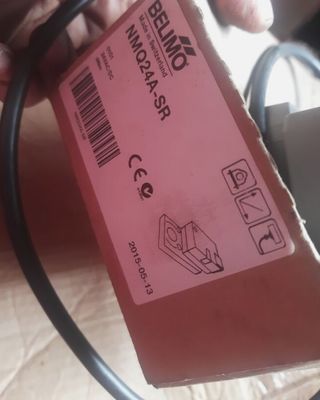

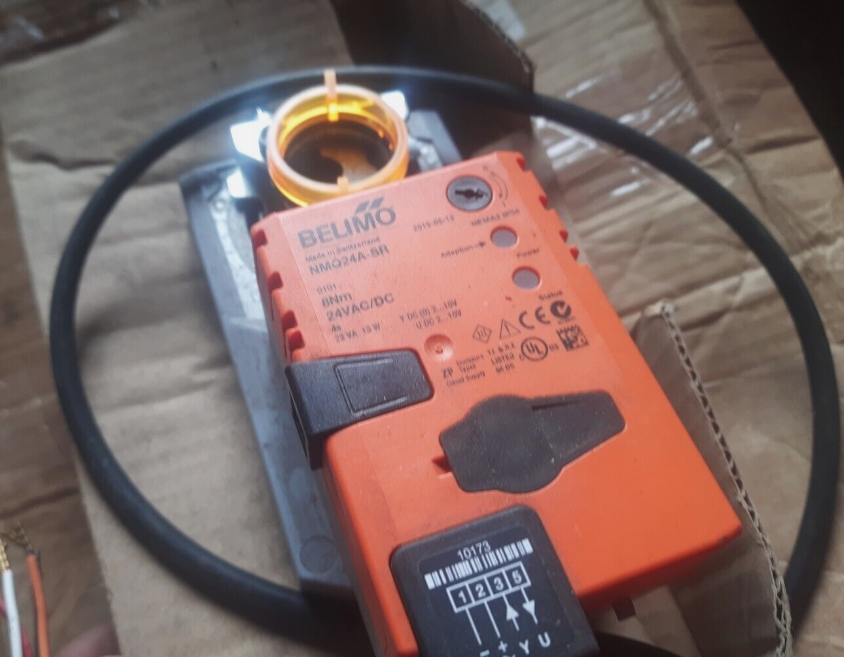

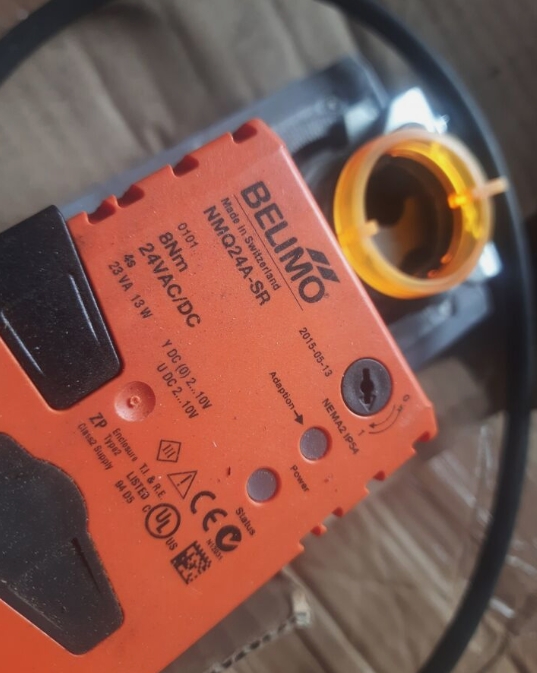

Model Number NMQ24A-SR
Minimum Order Quantity 1pc
Giá bán USD 185/PC
Packaging Details original packing
Delivery Time 1-3 working days
Payment Terms T/T
Supply Ability 1000pc/month

Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Nominal voltage AC/DC 24 V Power consumption (running) 13 W
Connection Supply Control Cable 1 m, 4x 0.75 mm² Torque 8 Nm
Protection category IP54
Làm nổi bật

Belimo air valve actuator with warranty

,

Belimo LM24A-SR control valve actuator

,

24V Belimo actuator for HVAC systems

Để lại lời nhắn
Mô tả sản phẩm

Specifications

Voltage AC/DC
AC/DC 24 V
Power consumption (running)
13 W
Power consumption (holding)
2 W
Power Consumption For Wire Sizing
23 VA
Connection Supply Control
Cable 1 m, 4x 0.75 mm²
Torque
8 Nm
Control type
DC 2...10 V
Direction Of Motion Motor
selectable with switch 0/1
Manual override
With push-button, can be locked
Angle of rotation
95°
Running time (motor)
4 s / 90°
Mechanical interface
Universal shaft clamp 8...26.7 mm
Protection category
IP54
Degree Of Protection NEMA
NEMA 2
Enclosure Type
UL Enclosure Type 2
Ambient Temperature
-30...40°C [-22...104°F]
