Megger DCM300E Clamp Meter 300 A ac CAT III

Megger DCM300E Clamp Meter 300 A ac CAT III

• 0.01 mA resolution
• EMC and IEC61010-2-032 compliance
• 30 mA, 300 mA, 30 A, and 300 A range
• 40 mm jaw size
• Analogue bar graph and digital display

The DCM300E earth leakage clamp meter has been designed primarily to check earth leakage currents with a dedicated 30 mA range providing resolution down to 10 µA.

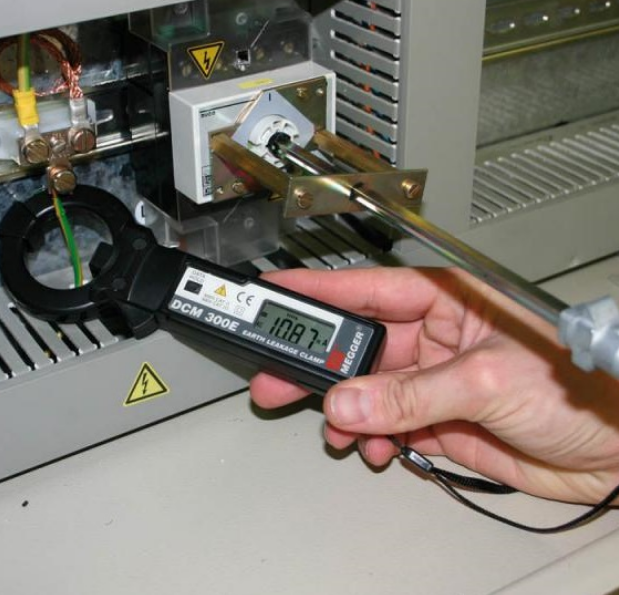

The capabilities of the DCM300E extend to measuring currents of up to 300 A AC, making it a highly versatile instrument capable of taking current measurements in a wide variety of situations and applications. For example, a typical application for the DCM300E would be the measurement of earth leakage current in a circuit where the RCD or GFCI repeatedly trips out. The measured result will quickly identify whether an excessive leakage current is causing the RCD or GFCI to trip, or if the RCD or GFCI itself is faulty.
