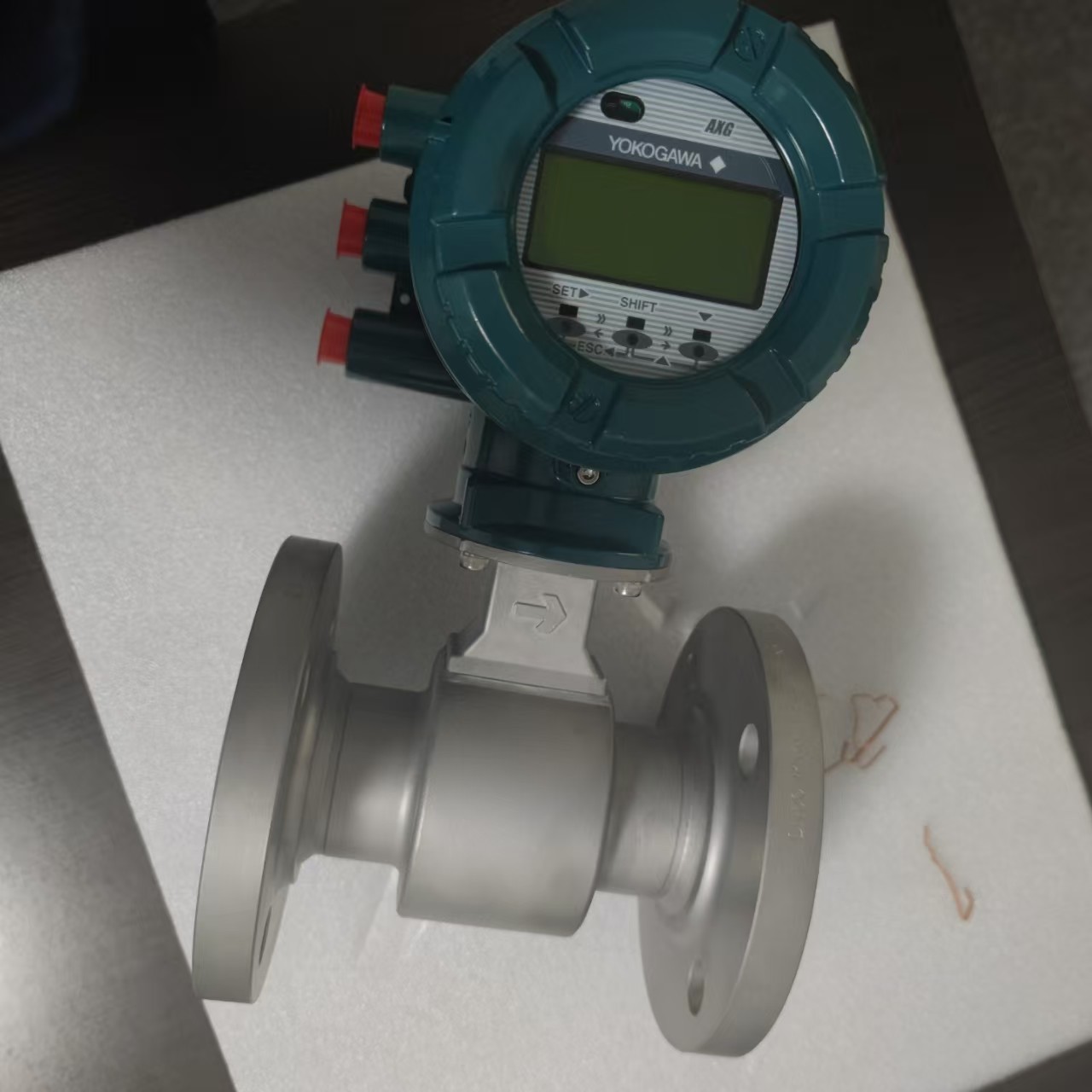

Yokogawa Magnetic Flow Meter With Transmitte AXG025-GA000AA1AL212B-2JA11/GRL

The ADMAG Total Insight(TI) series ADMAG AXG adopts the "Total Insight" concept and totally support the product life cycle.

ADMAG AXG magnetic flowmeter is a high-quality and highly reliable product developed based on years of experience and achievement, such as enhancement of application by our proprietary dual frequency excitation method.
Certified to SIL2 complied with functional safety standard IEC 61508, and can be used in safety instrumented systems up to SIL2 in simplex configuration and SIL3 in redundant configuration.

ADMAG AXG  is ideal for industrial process lines like oil & gas / chemical / pulp & paper / food & beverage / metal & mining applications.
With outstanding reliability and ease of operation and maintenance, developed on decades of field-proven experience, ADMAG AXG will increase your benefits while reducing total cost of ownership.

Remote Type		Integral Type
AXG1A High Grade Transmitter	AXG4A Transmitter	AXG Integral Type
Accuracy (Reading Value)	[Sensor Combination] - AXG: ± 0.3 % - AXW: ± 0.35 %	[Sensor Combination] - AXG: ± 0.3 %	± 0.3 %
Size	[Sensor Combination] - AXG: 2.5 to 500 mm - AXW: 25 to 1800 mm	[Sensor Combination] - AXG: 2.5 to 400 mm	2.5 to 400 mm
Use	[Transmitter] - General Purpose [Sensor Combination] - General Purpose - Explosion Protection - Hygienic - Submersible	[Transmitter] - General Purpose - Explosion Protection [Sensor Combination] - General Purpose - Explosion Protection - Hygienic - Submersible	General Purpose  Explosion Protection  Hygienic
Explosion Protection Use	[Sensor Combination] - AXG: IECEx, ATEX, USA (FM), Canada (FMc), Japan, Korea, Brazil (INMETRO), EAC - AXW: IECEx, ATEX, Korea, Brazil (INMETRO), EAC * Transmitter is usable only in the safety area.	IECEx, ATEX, USA (FM), Canada (FMc), Japan, Korea, Brazil (INMETRO), EAC
Liner Material	[Sensor Combination] - AXG: Ceramics, PFA - AXW: PTFE, Polyurethane,               Natural Soft Rubber,               Natural Hard Rubber	Ceramics, PFA
Communication Protocols	HART 7, BRAIN	HART 7, BRAIN, Modbus FOUNDATION Fieldbus PROFIBUS PA EtherNet / IP
Signal Cable Length	200 m	100 m	－
Main Function	- Easy Setup Wizard, Trend Graph Display Function - Data Logging Function (with microSD card) - Parameter Backup / Restore / Duplication Function (with microSD card) - Zero Adjustment - Display Test Function - Input/Output Test Function
Diagnostic Function	[Application Diagnostics] - Electrode Adhesion Detection - Sensor Empty Check - Wiring Connection Diagnosis - Flow Noise Diagnosis - Low Conductivity Diagnosis - Electrode Insulation Deterioration Diagnosis
	[Verification Function] - Built-in Verification - Standard Verification (with FSA130 ADMAG TI Verification Tool) - Enhanced Verification (with FSA130 ADMAG TI Verification Tool)
Current Signal	Input: 1 ch (Active) Output: 2 ch (Active)	Input: 1 ch (Active) Output: 2 ch (Active / Passive)
Pulse/Status Signal	Output: 2 ch (Active [With / Without Internal Resister] / Passive)
Status Signal	Input: 2 ch (Dry Contact) Output: 2 ch (Passive)	Input: 1 ch (Dry Contact) Output: 1 ch (Passive)
Alarm Signal	Output: 1 ch (Passive)	－
Multiple Languages	English, French, German, Italian, Spanish, Portuguese, Russian and Japanese.
Safety Integrity Level	－	SIL2
Others	[AXG1A/AXG4A Transmitter, AXG Integral Type] - LCD with improved environmental resistance - Equipped with temperature input terminal for Density correction and Calolie calculation [AXG Flow sensor,AXG Integral Type] - Expand Lining flare diameter, improve Seal reliability - Compatible with high pressure specifications ASME Class 600 - Selectable built-in grounding electrodes
