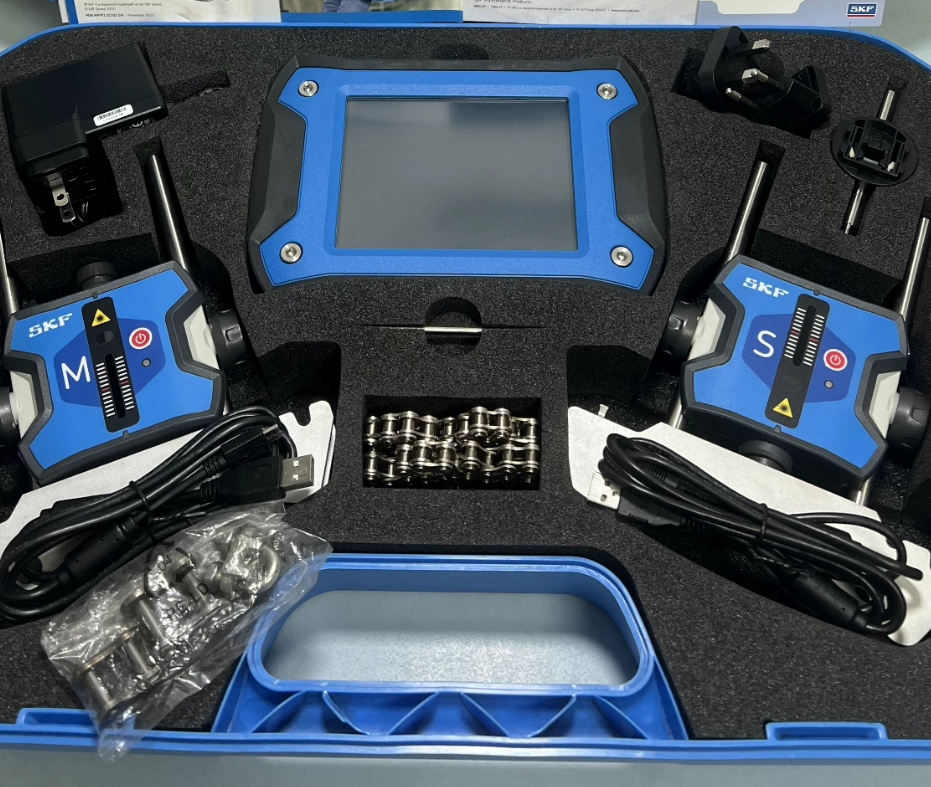

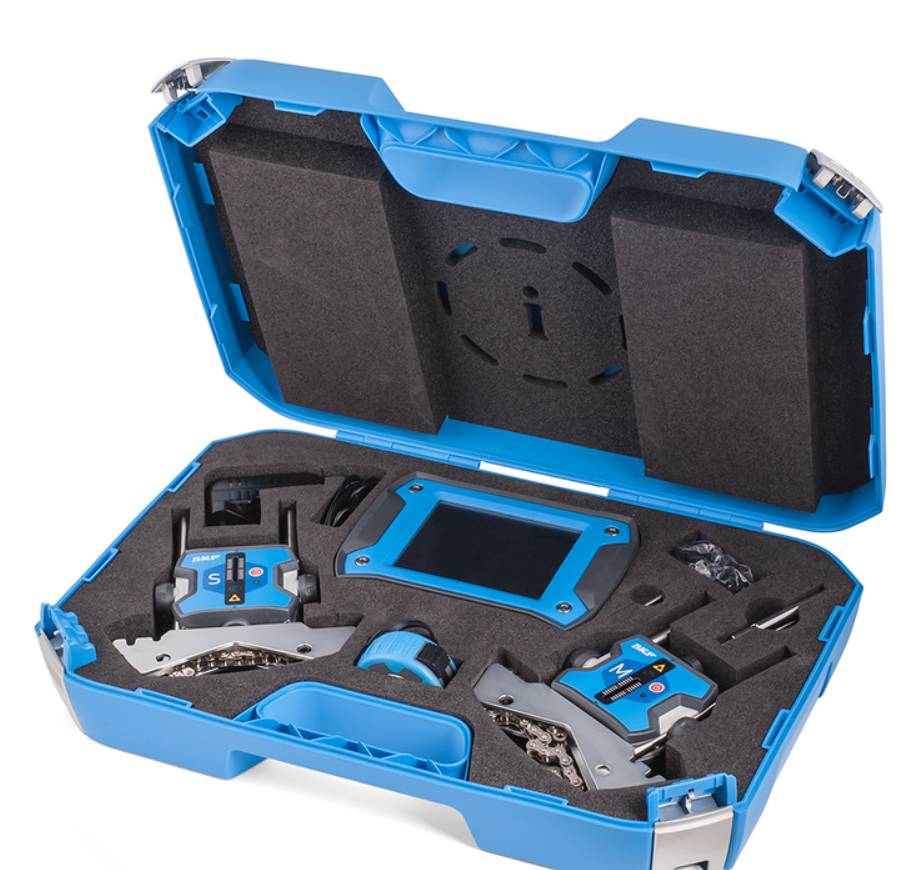

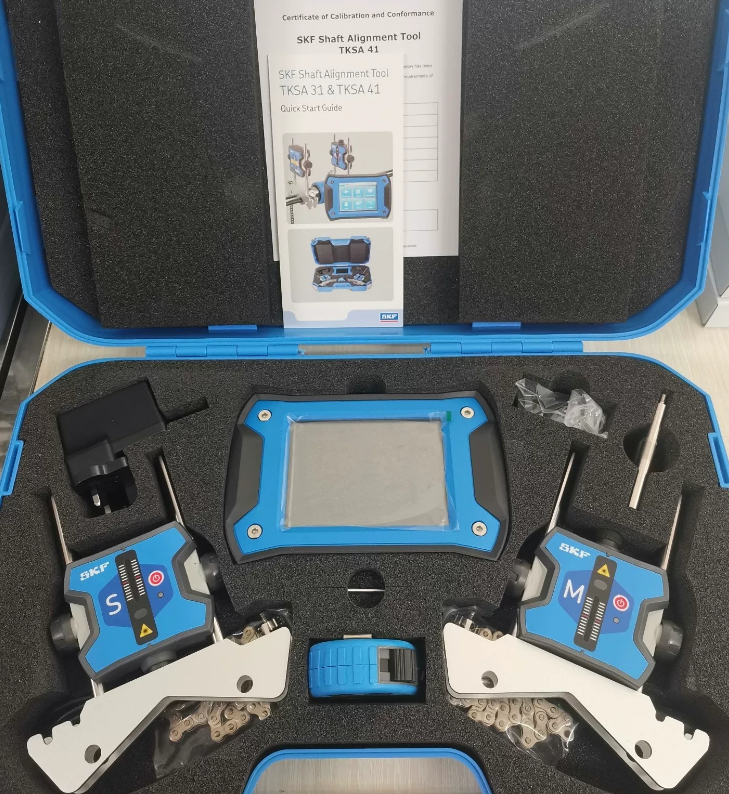

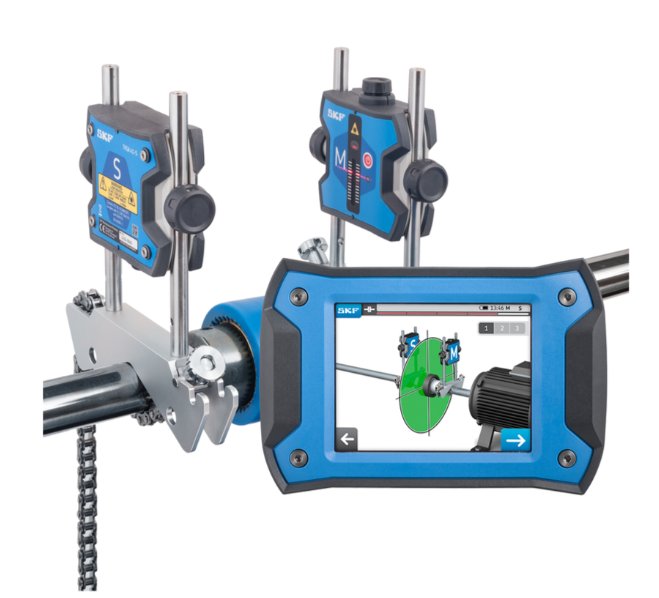

New original Shaft alignment tool SKF TKSA41 is available for shipment.

  • New original Shaft alignment tool SKF TKSA41 is available for shipment.
  • New original Shaft alignment tool SKF TKSA41 is available for shipment.
  • New original Shaft alignment tool SKF TKSA41 is available for shipment.
  • New original Shaft alignment tool SKF TKSA41 is available for shipment.
  • New original Shaft alignment tool SKF TKSA41 is available for shipment.
Nguồn gốc Hoa Kỳ
Hàng hiệu SKF
Số mô hình TKSA41
Số lượng đặt hàng tối thiểu 1
Giá bán USD＄6360
chi tiết đóng gói Bao bì gốc
Thời gian giao hàng 10 ngày
Điều khoản thanh toán L/C, D/A, D/P, T/T, Western Union
Khả năng cung cấp 10 cái
Thông tin chi tiết sản phẩm
Để lại lời nhắn
Mô tả sản phẩm
Ordering detals
Designation Description
TKSA 41 Shaft alignment tool
TKSA 41/KIT360 Alignment tool kit consisting of Shaft alignment tool TKSA 41 and shim kit TMAS 360
Technical data
Designation TKSA 41
Sensors and communication 29 mm (1.1 in.) CCD with line laser Class 2
Inclinometer ±0.5°; Bluetooth 4.0 LE and wired, USB cables
System measuring distance 0,07 to 4 m (0.23 to 13.1 ft)
Measuring errors < 0,5% ±5 µm
Housing material 20% Glass filled Polycarbonate
Operating time Up to 16 hours
Rechargeable LiPo battery
Dimensions 120 × 90 × 36 mm (4.7 × 3.5 × 1.4 in.)
Weight 220 g (0.5 lb)
Operating device 5.6" colour resistive touchscreen LCD display. High Impact PC/ABS with over mould
Software/App update via USB stick
DU Operating time Up to 8 hours (100% backlight)
Dimensions 205 × 140 × 60 mm (8.1 × 5.5 × 2.4 in.)
Weight 640 g (1.4 lb)
Alignment method Alignment of horizontal shafts, 3 position measurement 9 -12 -3, automatic measurement, measurement (with min. 90° rotation), soft foot
Live correction values Vertical and horizontal
Extra features Machine library, QR code reading, automatic .pdf report
Fixture 2 × V-brackets with chains, width 21 mm (0.8 in.)
Shaft diameters 20 to 150 mm (0.8 to 5.9 in.)
300 mm (11.8 in.) with optional extension chains (not included)
Max. coupling height * 105 mm (4.2 in.) with standard rods
195 mm (7.7 in.) with extension rods (included)
Power adapter Input: 100V-240V 50/60Hz AC power supplier
Output: DC 12V 3A with EU, US, UK, AUS adapters
Operating temperature 0 to 45 °C (32 to 113 °F)
IP rating IP 54
Carrying case dimensions 530 × 110 × 360 mm (20.9 × 4.3 × 14.2 in.)
Total weight (incl. case) 4.75 kg (10.5 lb)
