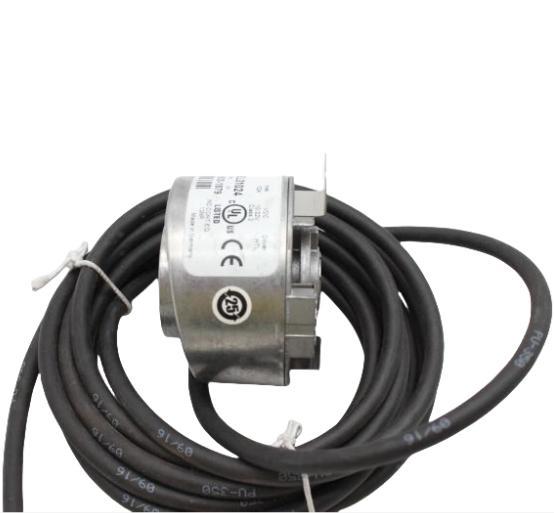

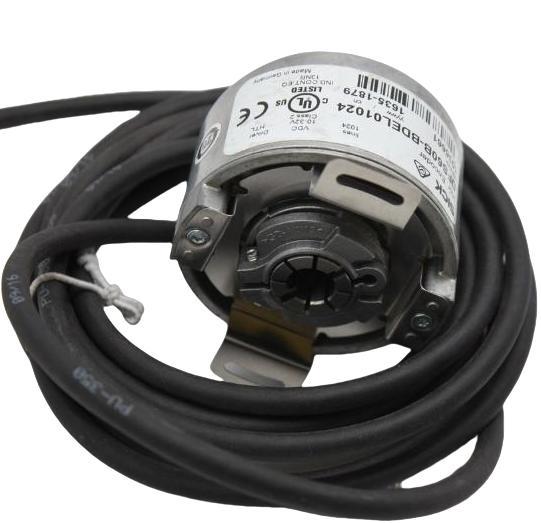

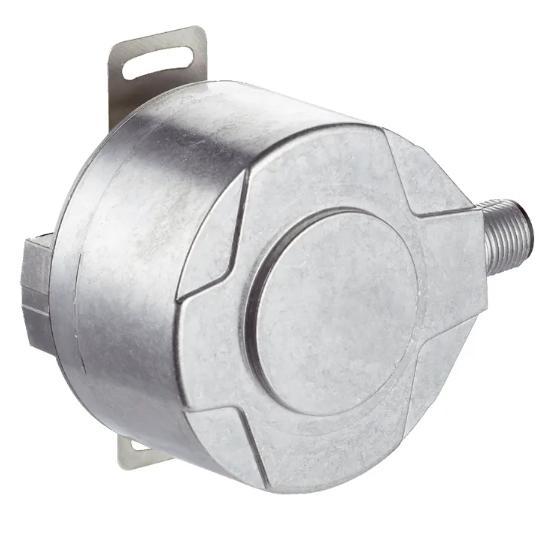

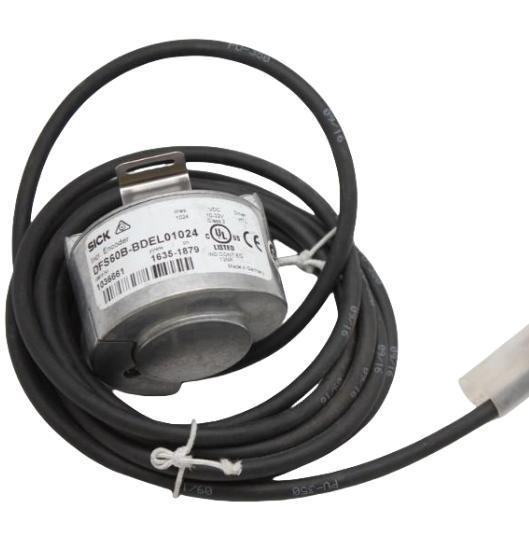

Sick DFS60B-BDEL01024 INCREMENTAL ENCODER

  • Sick DFS60B-BDEL01024 INCREMENTAL ENCODER
  • Sick DFS60B-BDEL01024 INCREMENTAL ENCODER
  • Sick DFS60B-BDEL01024 INCREMENTAL ENCODER
  • Sick DFS60B-BDEL01024 INCREMENTAL ENCODER
  • Sick DFS60B-BDEL01024 INCREMENTAL ENCODER
  • Sick DFS60B-BDEL01024 INCREMENTAL ENCODER
Nguồn gốc nước Đức
Hàng hiệu Sick
Chứng nhận CCC,CE
Số mô hình DFS60B-BDEL01024
Số lượng đặt hàng tối thiểu 1
Giá bán $270
chi tiết đóng gói Bao bì gốc
Thời gian giao hàng 5-8 ngày làm việc
Điều khoản thanh toán L/C,D/A,D/P,T/T
Khả năng cung cấp 1000pc/tháng
Thông tin chi tiết sản phẩm
số kênh tín hiệu 6 kênh thời gian khởi tạo 40 mili giây
Tần số đầu ra 600 kHz điện áp cung cấp 10 ... 32 V
Để lại lời nhắn
Mô tả sản phẩm
1. High Precision Measurement Performance
  • Resolution: Fixed 1024 pulses per turn, 90° electrical phase shift between Channel A & B for direction identificationSICK
  • Ultra-low angular error: Max total deviation ±0.05°, pulse width deviation ±0.008°, ensures stable positioning accuracySICK
  • Built-in single zero reference Z signal; zero pulse width programmable (90°/180°/270°) for flexible homing logic
  • Max output frequency up to 600 kHz, supports high-speed motion feedback
  • Bidirectional rotation detection via A/B quadrature signals
2. Flexible Programmable Electrical Interface
  • Universal dual signal output: Programmable TTL (RS-422) / HTL push-pull without hardware replacement
  • Wide supply voltage range: 4.5 VDC ~ 32 VDC, compatible with PLC, servo drive and motion controller power systems
  • Complete circuit protection: Reverse polarity protection, channel short-circuit protection (tolerate short circuit up to 30s)SICK
  • 6 signal channels (A, /A, B, /B, Z, /Z) for differential noise-resistant transmission
  • Max load current per channel: 30 mA, stable long-distance signal transmission
3. Robust Mechanical Design (Blind Hollow Shaft Type)
  • Housing diameter: 60 mm, die-cast aluminum housing, lightweight only ~0.2 kg

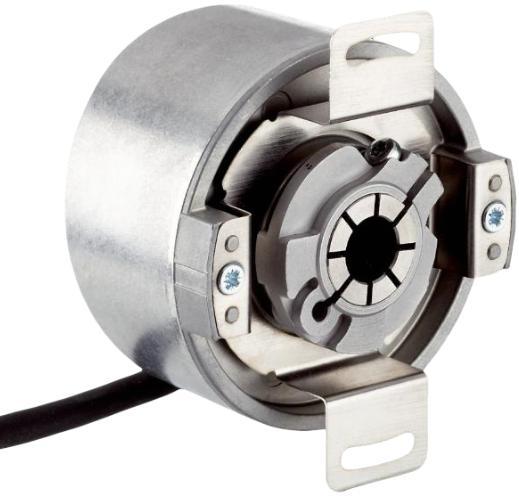

  • Blind hollow shaft structure, 12 mm inner shaft diameter with front clamping collet, easy mounting on motor shafts without shaft extensionSICK
  • Stainless steel shaft, low startup torque (0.8 Ncm) & running torque (0.6 Ncm), reduces motor load loss
  • Excellent shaft offset tolerance: Static radial ±0.3 mm / axial ±0.5 mm; dynamic radial ±0.1 mm / axial ±0.2 mm, adapts to minor shaft misalignment
  • Max continuous operating speed: 6,000 rpm; angular acceleration up to 500,000 rad/s² for fast dynamic motion
  • Extra-long bearing service life: 3.6*10¹⁰ revolutions, lowers replacement frequency
4. Harsh Environment Resistance
  • Enclosure protection grade: IP65 for both shaft side and connector side with matched cable plug, dustproof and splash-proofSICK
  • Wide working temperature: -40 °C ~ +100 °C, fits cold storage, heating furnace and outdoor equipment
  • Outstanding anti-vibration & anti-shock capability: Vibration resistance: 30 g, 10 Hz–2,000 Hz Shock resistance: 70 g, 6 ms (per EN 60068-2-27)SICK
  • EMC compliant with EN 61000-6-2 / EN 61000-6-4, strong immunity to industrial electromagnetic interference
  • Tolerate 90% relative humidity (non-condensing)
5. Flexible Installation & Connection

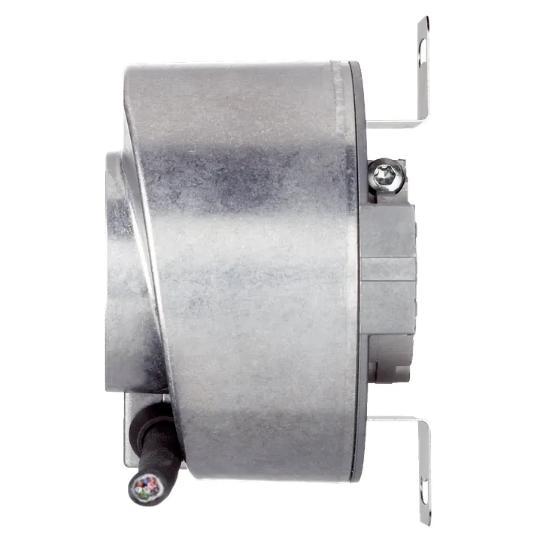

  • Radial / axial rotatable cable outlet, no sharp cable bending during wiring, saves installation space
  • Multiple matching cable connectors optional, convenient on-site wiring
  • Compact overall dimension, suitable for limited installation space on motors, conveyors and machine tools
  • Front clamp hollow shaft design allows quick assembly and disassembly without extra coupling parts
6. Low Maintenance & Long Service Life Advantages
  1. Contactless optical scanning principle, no mechanical wear inside the encoder core
  2. Programmable signal output unifies spare part model, reduces inventory cost
  3. Built-in comprehensive electronic protection avoids circuit burnout from field wiring errors
  4. High mechanical shock/vibration resistance minimizes failure rate on vibrating equipment like printing, packaging machinery
  5. Long bearing lifespan extends equipment continuous operation time
7. Typical Industrial Applications
  • Servo motor speed & position feedback
  • Printing, packaging, textile machine length counting
  • Conveyor belt speed monitoring & positioning
  • CNC machine tool auxiliary axis measurement
  • Logistics lifting and handling equipment motion control
